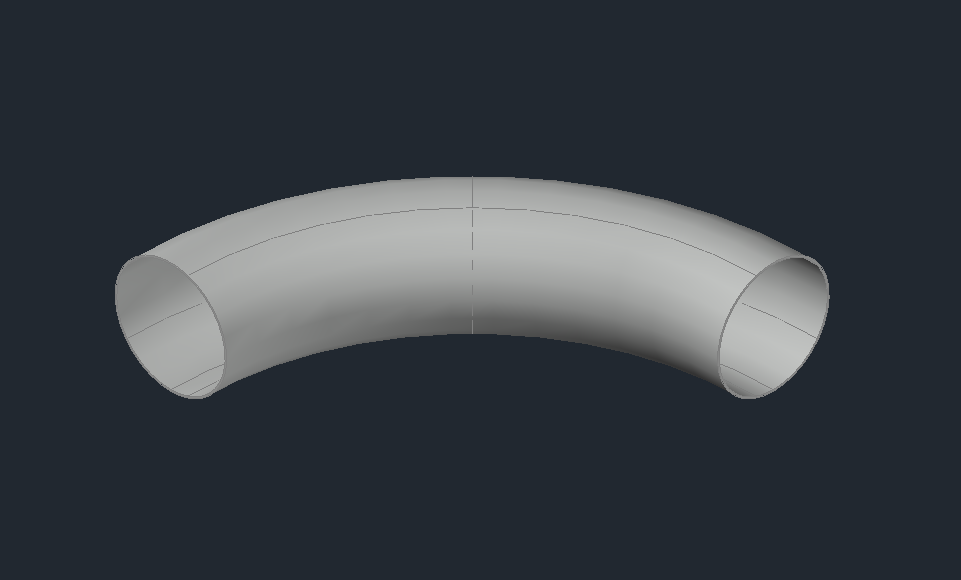

The command allows you to draw a 3D elbow (or curve) pipe, represented by the angular extrusion of an Angle (A) and Radius (R) of a section of a hollow circle with Diameter (D) and Thickness (T). Optionally, two Straight Segments (TL) are provided at the pipe's entry and exit.

the elbow pipe presents the following insertion options:

Default: Insertion via Connector. This option requires selecting the connector to define the base point and direction of the elbow. The angle of rotation is then requested, which can be set using a protractor.

POint: Insertion by Point and Direction. This option asks you to specify the base point and direction. Once these are defined, you are prompted to input the rotation angle using a protractor.

COrner: Corner Placement on Path. You are asked to select the vertex point and then two points on the first and second lines intersecting at the vertex.

PIpes: Connection of Two Pipes. This option is used when there are two straight pipes intersecting at a vertex, and you need to connect them with a elbow (bend).
