Scala

What it does:

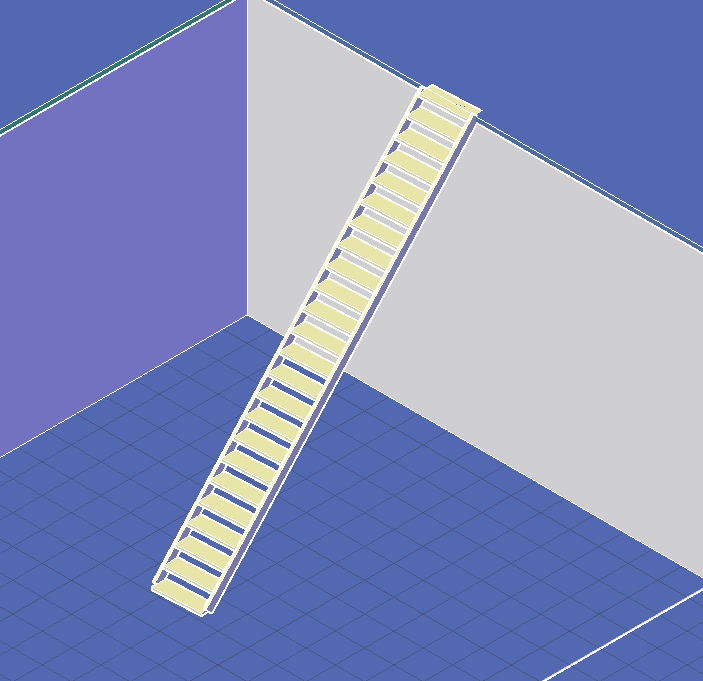

The command allows you to draw staircases in 3D.

Purpose:
The command is used to draw staircases.

How to use it:
When the command is launched, a dialog window will appear with the various settings.

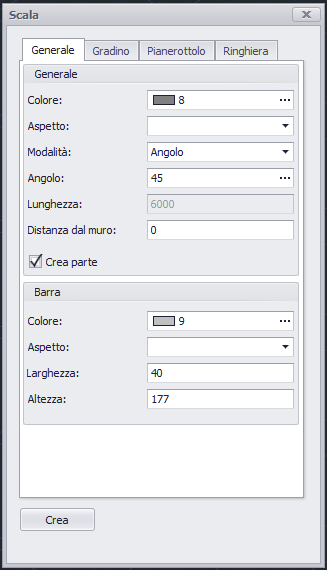

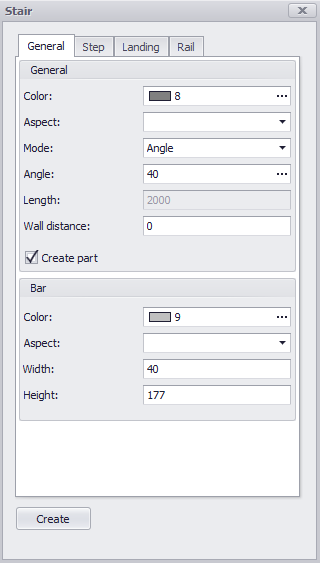

General
Color: Indicates the color of the staircase.
Appearance: Indicates the material of the staircase.
Mode: Determines whether to draw the staircase based on the angle or the length.
Angle: Indicates the angle of inclination of the staircase.
Length: Indicates the length of the staircase.
Distance from the wall: Indicates the distance from the end of the staircase to the wall.
Create Part: Determines whether to create a dedicated part for the staircase.

Bar
Color: Indicates the color of the staircase sidebars.
Appearance: Indicates the material of the staircase sidebars.
Width: Indicates the width of the staircase sidebars.
Height: Indicates the height of the staircase sidebars.

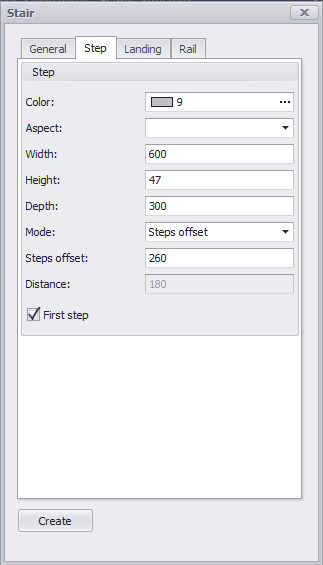

Step
Color: Indicates the color of the steps.
Appearance: Indicates the material of the steps.
Width: Indicates the width of the steps.
Height: Indicates the height of the steps.
Depth: Indicates the depth of the steps.
Mode: -
Offset: -
Distance: -
First Step: Determines whether to draw the first step of the staircase.

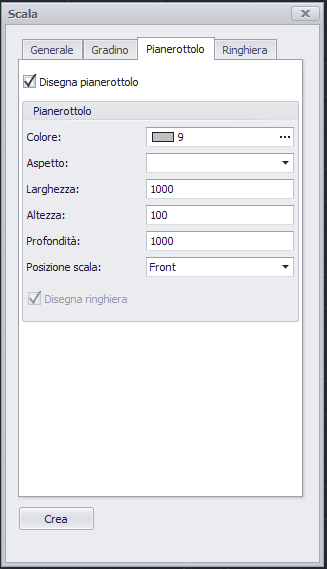

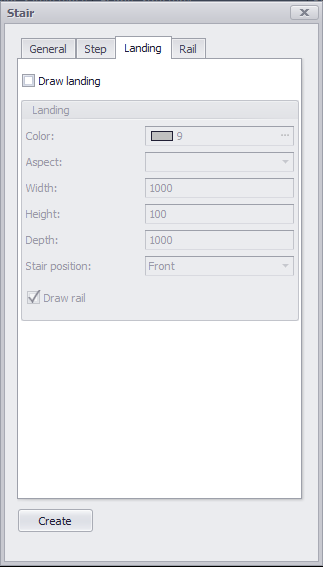

Landing
Draw landing: Determines whether to draw the landing at the top of the staircase.
Color: Indicates the color of the landing.
Appearance: Indicates the material of the landing.
Width: Indicates the width of the landing.
Height: Indicates the height of the landing.
Depth: Indicates the depth of the landing.
Position staircase: Indicates where to position the staircase (Front, Left, Right).
Draw railing: Determines whether to draw the railing on the landing.

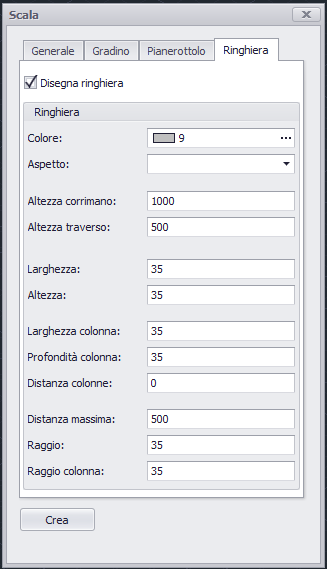

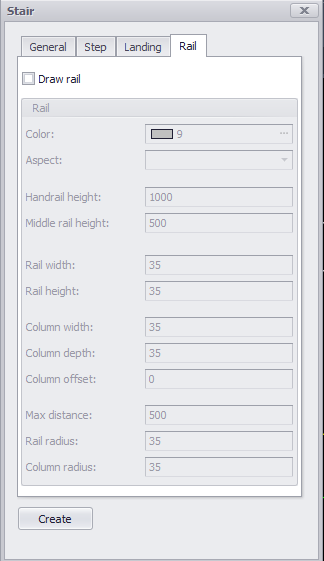

Railing
Draw railing: Determines whether to draw the railing of the staircase.
Color: Indicates the color of the railing.
Appearance: Indicates the material of the railing.
Handrail height: Indicates the height of the handrail.
Crossbar height: Indicates the height of the crossbar.
Width: Indicates the width of the railing.
Height: Indicates the height of the railing.
Column width: Indicates the width of the columns.
Column depth: Indicates the depth of the columns.
Column distance: -
Max distance: Indicates the maximum distance between the various columns.
Radius: -
Column radius: -
