Scala a Pioli

Function:

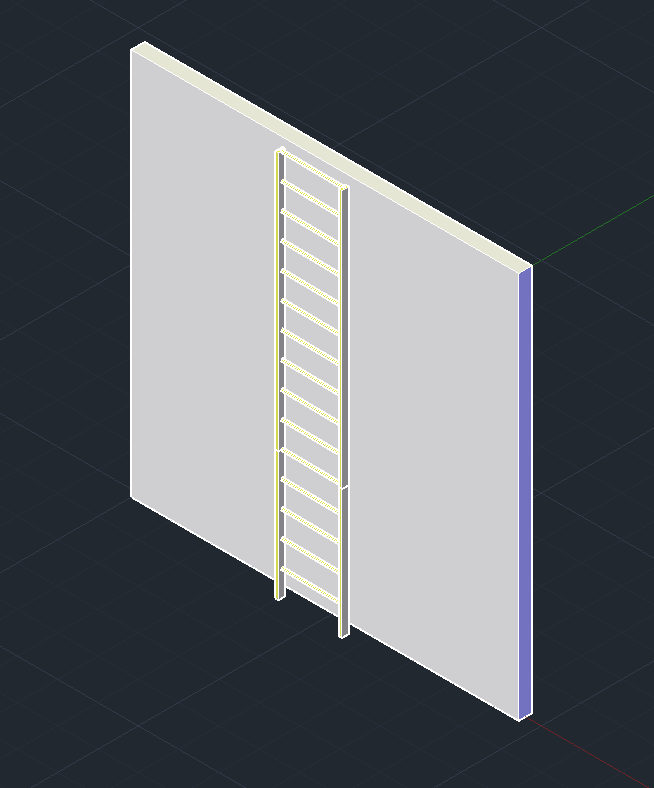

This command allows you to draw a ladder with rungs in 3D.

Purpose:
The command is used to draw ladder rungs.

How to Use:

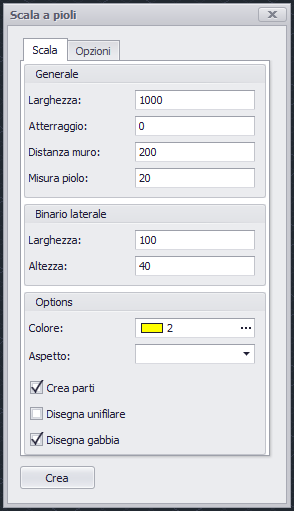

Once the command is activated, a dialog box will appear with various settings.


General

  • Width: Indicates the width of the ladder.
  • Landing: -
  • Wall Distance: Specifies the distance from the wall where the ladder will be positioned.
  • Rung Size: Defines the size of the rungs on the ladder.

Side Rail

  • Width: Width of the side rail of the ladder.
  • Height: Depth of the side rail of the ladder.

Options

  • Color: Specifies the color of the ladder.
  • Material: Specifies the material of the ladder.
  • Create Parts: Determines whether to create a dedicated part for the ladder.
  • Draw Uniflare: Determines whether to draw the ladder as a series of 2D lines or use a 3D model.
  • Draw Cage: Determines whether to draw a protective cage around the ladder.

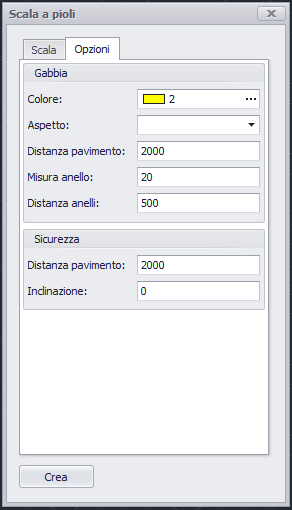

Cage

  • Color: Specifies the color of the ladder's protective cage.
  • Material: Specifies the material of the protective cage.
  • Floor Distance: Specifies the distance from the floor where the protective cage should start.
  • Ring Size: Defines the size of the rings on the protective cage.
  • Ring Distance: Defines the distance between the rings of the protective cage.


Safety

  • Floor Distance: Specifies the distance from the floor to incline the rungs of the ladder.
  • Inclination: Specifies the angle of the rungs of the ladder.
