Automatic Labeling

What

Performs automatic labeling of selected parts.

Why

To perform the so-called "labeling" more quickly: that is, one or more parts are selected to which the command associates a label.

How

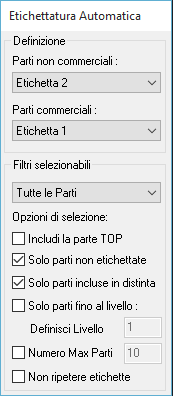

  • After launching the command, a dialog appears that allows you to customize the automatic labeling. The first two list boxes allow you to associate the values ​​defined by Label 1 and Label 2 (TOP variables, customizable through the balloon style) to the commercial and non-commercial parts.

The filtering options in this command are the same as those that can be used in the automatic ballooning command. Once the various options have been chosen, the user must select the parts to be labeled and then, after pressing enter to confirm, can decide what distance to set between one label and another.

Unlike dots, labels can only be positioned horizontally.
